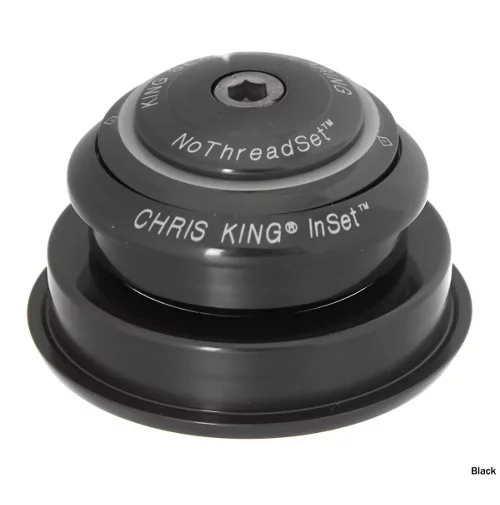

Chris-king Chris King InSet 2 Semi Integrated Headset

Chris King InSet 2 Headset

InSet™ is the latest addition to the Chris King® NoThreadSet™ family. InSet™ is a low-stack threadless headset designed for use with contemporary frames featuring what would traditionally be called “oversized” headtubes.

As times have changed, so have the designs of bicycles. These new large headtubes allow frame manufacturers greater surface area on which to attach top tubes and downtubes with the overall result being improved frame strength and rigidity. Chris King pride themselves on adapting Chris’ forward-thinking original modular designs into ever-evolving configurations to meet most new bicycle designs. The Chris King® InSet™ now brings King’s legendary bearing quality and time-tested durability to even more bicycle models.

GripLock™ Bearing Cap

Our InSet headsets feature an all-new bearing cap design. GripLock™ is a multi piece bearing cap that utilizes a split ring that improves steerer tube interface

For tapered 1-1/8” to 1.5” steerer tubes but can be used with 1-1/8” steerer tubes by purchasing a Devolution 1.5 to 1-1/8” Baseplate/crown race.

Features:

• Steerer Tube OD: 1-1/8” to 1.5” tapered
• Upper headtube ID: 44mm
• Lower headtube ID: 55.95mm
• Upper headtube ream depth: 10mm
• Lower headtube ream depth: 15mm
• Fork crown seat OD: 39.8mm
• Upper stack height: 8.46mm
• Lower stack height: 4.11mm
• Weight: 150g
