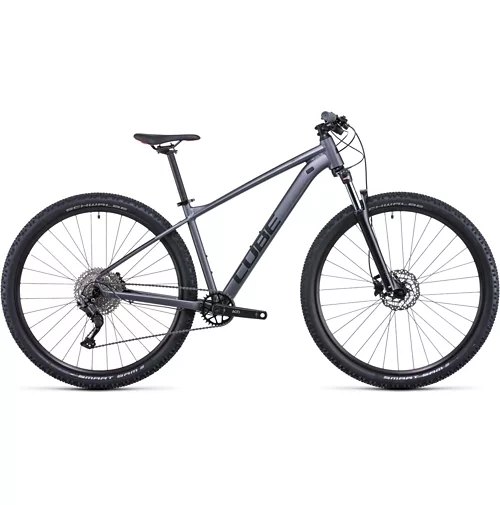

Cube Aim EX Hardtail Bike

The Aim EX features a sleek and stylish frame design that’s optimised for exceptional trail riding performance anywhere. Its Aluminium Lite frame is equipped with SR Suntour XCM suspension forks with remote lockout. This frame provides off-road stability, agility and comfort and the suspension smooths-out rough terrain while the lockout feature ensures you climb steep hills efficiently. Also, it’s fitted with a Shimano Deore 1×10-Speed groupset with a wide-ranging 11-46T cassette and hydraulic disc brakes. This hardtail mountain bike gives you power and confidence to climb mountains and ride singletrack, forest trails and laps of your local bike park.

Reliable, Efficient and Stylish Hardtail Mountain Bike

Anyone who is gripped by off-road fever needs a bike that they can fully rely on. One like the Aim EX with its extremely reliable, wide-ranging Deore 1×10-speed gearset from Shimano, which shifts smoothly and precisely through the gears at the touch of a finger. The XCM fork from Suntour with remote lockout offers 100mm of travel that swallows up all the bumps and holes on the trails like nothing. There are also grippy 2.25-inch-wide tyres and powerful hydraulic disc brakes from Shimano. Plus, Cube’s SizeSplit system with appropriate wheel sizes in relation to the frame and this bike can be equipped with a dropper seatpost for enhanced versatility and adaptability. It’s ideal for riding off-road trails anywhere.

Lightweight Aluminium Frame

You want a bike that responds quickly, safely and intuitively. That’s why the Aim’s top and down tubes have advanced profiles – to ensure that it steers accurately and accelerates effortlessly. Built with 6061 aluminium using Cube’s Advanced Mechanical Forming process, it’s your guarantee of a lightweight, comfortable and durable performance.

Hardtail Mountain Bike with Internal Cable Routing

The frame also has internally routed cables to keep your gears running smoothly with reduced maintenance, and Agile Ride Geometry delivers assured, nimble handling to put a smile on your face, every time. And, there’s even rack and guard mounts, so you can optimise your ride for every adventure.

Features:

Frame: Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Sizes: Size Split: 27.5: XS (14 “), S (16”) // 29: M (18 “), L (20”), XL (22 “), XXL (24”)
Fork: SR Suntour XCM Disc, 100mm, remote lockout
Brake System: Shimano BR-MT200 / UR300, Hydr. Disc Brake, PM / FM (160/160)
Rear Derailleur: Shimano Deore RD-M5120-SGS, 10-speed
Gear Lever: Shimano Deore SL-M4100, Rapidfire-Plus
Crankset: ACID MTB Alloy 32T
Cassette: Sunrace CSM52, 11-46T
Chain: KMC X10
Front Hub: Shimano HB-TX505, QR, Centrelock
Rear Hub: Shimano FH-TX505, QR, Centrelock
Rims: CUBE ZX20, 32H, disc
Tyres: Schwalbe Smart Sam, Active, 2.25
Stem: CUBE Performance Stem Pro, 31.8mm
Handlebar: CUBE Rise Trail Bar, 680mm
Grips: ACID React
Seat Post: CUBE Performance Post, 27.2mm
Seatclamp: CUBE Varioclose, 31.8mm
Saddle: Natural Fit Venec Lite
Headset: CUBE FPH868, Top 1 1/8″, Bottom 1 1/2″, Semi-Integrated
Pedals: CUBE PP MTB
Weight: 13.9 kg

Easy Assembly

When you order a bike, one of our trained mechanics will carefully prepare and pack your bike for shipping. Upon delivery, the assembly is simple and all necessary tools and plastic pedals are conveniently included in the box.

Depending on the delivery service and destination, bikes will either be delivered in a large or a small box. Below is a guide as to how your bike will arrive:

All bikes for delivery within the UK and Republic of Ireland will be delivered in a large box, except for balance bikes and BMX bikes, which are always delivered in manufacturer’s boxes.
All bikes for delivery within the EU on a standard service will be delivered in a large box. If an express delivery option is chosen, your bike will be packed into a small box. Again, the exception is balance bikes and BMX bikes, which are always delivered in manufacturer’s boxes.
All bikes for worldwide delivery outside the EU will be delivered in small boxes.

This video demonstrates assembly from a SMALL BOX.

This video demonstrates assembly from a LARGE BOX.

Note: Manufacturer may reserve the right to change the specification of that listed or shown on this page.
