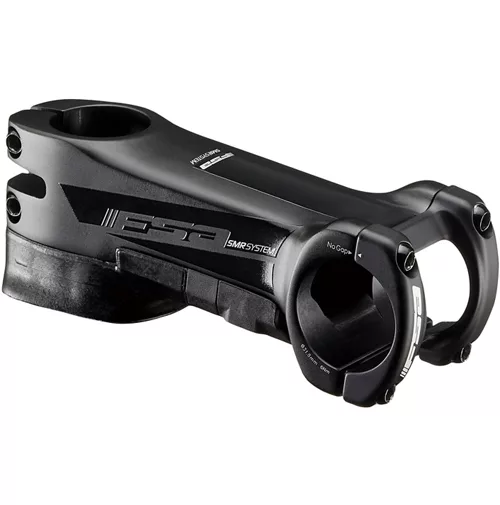

FSA NS SMR Integrated Routing Stem

FSA NS SMR Integrated Routing Stem

This stem is designed for dependable performance, whether you’re racking up the miles on your road bike or spending the weekend exploring the countryside backroads on your gravel ride. It features a 3D forged and CNC machined AL6061 aluminium construction, which allows it to deliver maximum toughness and durability, without adding any unnecessary grams to your steering setup. FSA has also kitted out this version with a fine blasted anodised finish for additional protection against corrosion, making it ideal for all weather conditions.

FSA SMR System

The FSA SMR System – Smart Cable Routing – is designed around a versatile stem and headset combination that allows for a variety of both integrated and semi-integrated cable routing. Utilising FSA’s core knowledge base of both headset and cockpit components, the SMR system provides a “plug-in” solution for bike brands looking to internally route cables, wires and hoses from the cockpit into the frame. Compatible with electronic and mechanical shifting plus hydraulic and mechanical braking the SMR system truly is the most versatile and adaptable cable routing solution available on the market.

Integrated and Semi-Integrated Cable Routing

The SMR stem is adaptable for both full internal wiring from handlebar through the stem and headset into the frame or in a semi-integrated path with cables, wires and hoses routing underneath the stem and held by the SMR cover. While providing a sleek and aerodynamic shield, the length adjustable cover also allows for routing without stem removal and provides a base for a variety of handlebar choices.

Features:

• Stem Material: 3D forged and CNC machined AL6061 Aluminium
• Faceplate Material: Alloy
• Hardware Material: Chromoly (CrMo) Steel
• Finish: Fine blasted Anodised
• Use: Road, Gravel
• Bar Clamp Diameter: 31.8mm
• Steerer Diameter: 1 1/8″
• Angle: -6 degrees
• Fork Clamp Stack Height: 33.5mm
• Fork Size: 28.6mm
• Cable Routing: Smart Cable Routing (SMR)
• Weight: 235g (100mm option)

Technologies:

• SMR Cable Routing System: The SMR System not only provides a clean modern aesthetic but, by hiding cable, wires and hoses, also creates an aerodynamic advantage.
• No External Cable Contact: With both the integrated or semi-integrated pathways, frame wear and tear is minimised due to removing external cable contact.

Manufacturer’s Part Numbers:

• 175-0043062870 Black 90mm
• 175-0043095870 Black 100mm
• 175-0043098870 Black 110mm
• 175-0043099870 Black 120mm
• 175-0043100870 Black 130mm
