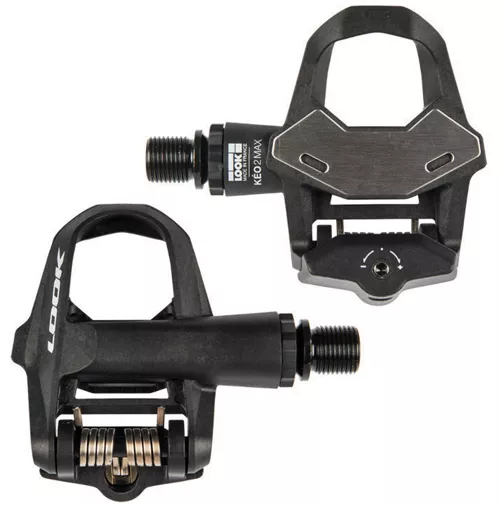

Look Keo 2 Max Pedals

Look Keo 2 Max Road Pedals

With a thin body for reduced drag and wider size, the Keo 2 Max road bike pedals make your feet more stable and make the most of your power delivery. Made with a tough composite body, a plate of hard-wearing stainless-steel and a chromoly (CrMo) axle, their modern design complements the styling of today’s bikes. By increasing the overall contact area with your cycling shoe, Look has ensured these pedals bring you increased comfort and efficiency.

Features:

• Body Material: Composite body with Stainless-Steel platform
• Axle Material: Oversized Chromoly (CrMo)
• Axle Size: Standard 9/16″ thread
• Intended Use: Road (recreational to competition use)
• Pedal Stack Height: 17.3mm (including cleats)
• Platform Width: 60mm
• Contact Surface Area: 500mm²
• Tension: 8Nm to 12Nm adjustable spring
• Cleats Included: Yes, supplied with grey Look Keo Grip Cleats
• Float: 4.5° grey cleats included (black 0° and red 9° cleats available separately)
• Distance Pedal Spindle / Crank Arm (Q Factor): 53mm
• Pair or Single: Pair
• Weight: Single Pedal: 130g; Pair with Cleats: 328g

Technologies:

• Optimised Surface Contact: The Look Keo 2 Max pedal’s surface area has substantial symbolic importance. It is part of the brand’s identity and acts as an indelible signature on the product. The contact surface of these revised Keo 2 Max pedals preserves the strong lines on which its history was built. Its width has been increased to 60 mm to provide a larger platform and improved foot stability during pedalling. This creates a feeling of unrivalled comfort not found in any other pedal. Look also sought to optimise power transfer thanks to its larger 500 mm² of usable surface (+25% increase). The shape of the stainless-steel plate has been revised to match that of the cleat and to keep, regardless of the position of your foot (depending upon the angular float you use), the same amount of contact for consistent performance. Increasing the pedal’s usable contact surface, without any additional weight gain, improves the power to weight ratio, making the product even better and allowing you to perform at your best
• Improved Spindle Profile: The spindle profile of the Keo 2 Max pedals has also been optimised. Built around an oversized CrMo+ steel axle, it is composed of an axle with an inner ball bearing and a needle roller bearing, located under the contact surface, to handle the load and distribute it optimally. A new component has been added between these two bearings. A serrated washer, previously used to hold the needle roller bearing in place, has been replaced with a conical spacer. This technical solution reduces friction, increases fluidity, and by consequence, decreases the geometrical tolerances of the pedal body and play. The sole purpose of the sum of these improvements has been to guarantee you irreproachable reliability
