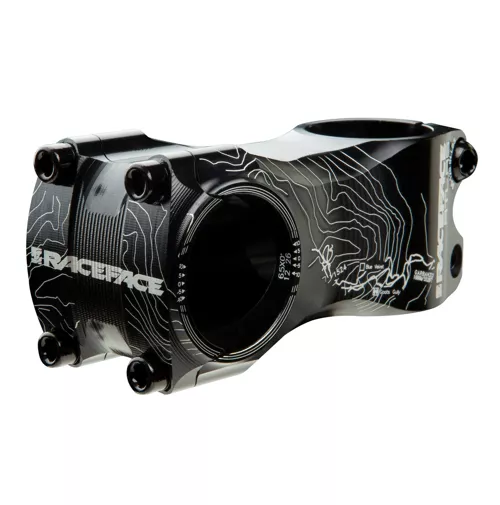

Race Face Atlas Mountain Bike Stem

Race Face Atlas Mountain Bike Stem

Off-road experts Race Face knows what mountain bike (MTB) components need to withstand aggressive riding and harsh terrains, so it made its Atlas stem from 6061 aluminium and gave it a unique handlebar clamp design. This interlocking type clamp draws impact forces and vibrations into the stem’s body, away from the bolts and preventing stress points on your bars. This tough stem also has an opposing bolt design for the steerer tube clamp for a firm hold without unwanted stress. It’s an ideal addition to any All-Mountain (AM), Cross Country (XC) or Downhill (DH) bike’s cockpit.

Features:

• Material: 6061 Aluminum
• Use: All-Mountain (AM), Cross Country (XC) and Downhill (DH)
• Rise: 0°
• Handlebar Clamp Diameter: 31.8mm
• Fork Steerer Tube Clamp Diameter: 1.1/8″
• Stack Height: 40mm
• Invertible: No
• Stem Cap Included: No
• Four bolt bar clamp holds bar securely in position.
• Interlocking U-Shaped handlebar clamp geometry
• Faceplate eliminates “stress risers” which cause your bar to bend or break
• Opposing bolts on steer tube clamp provides extreme clamping power while reducing stress on the steer tube
• Available in 1 1/8 with a 31.8mm bar clamp only Laser etched logos
• Comes with a Race Face 5 Year Warranty
• Weight: 50mm: 150g; 65mm: 170g
