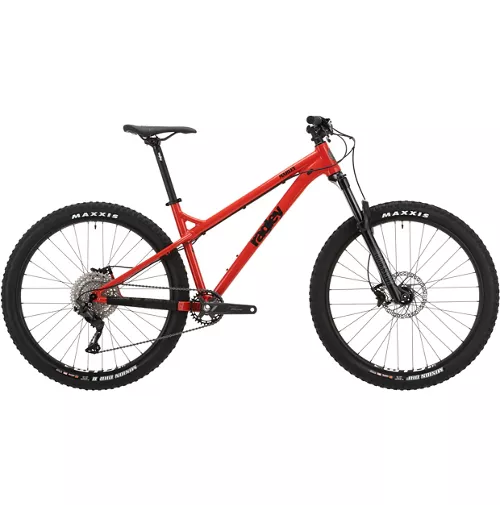

Ragley Marley 2.0 Hardtail Bike

Whether you’re chilling with friends on local woodland singletrack trails or hitting bigger, more demanding lines at bike park, the Marley 2.0 is a great steppingstone into the world of modern hardtail mountain bike (MTB) riding. Ragley’s alloy frame with slack geometry, a tapered head tube and 148mm Boost rear axle spacing gives a sublime balance of agility, dependability and strength at a low weight.

Getting you up the mountain, over the top and back down the other side, Ragley has equipped it with a Shimano Deore 10-Speed groupset with a wide-ranging 11-46T cassette and SRAM DB8 hydraulic disc brakes. RockShox Recon Silver forks with Remote Lockout (RL) and 130mm-travel keep your front wheel planted on rough and loose terrain while also offering additional comfort and control. It also rolls upon Nukeproof Neutron hubs laced into Tubeless Ready WTB ST i30 rims that are wrapped in high-grip Maxxis Minion tyres.

The Marley has become a classic: light, punchy and versatile. It might be your first bike to explore off-road, or the agile plaything of a seasoned rider. Using 6061 alloy tubing, the Marley balances a stiff frame with enough compliance for the longest of days in the saddle.

Geometry is based firmly around fun with a 65.5-degree head angle keeping things stable and confidence inspiring on the rough stuff. Elsewhere on the frame the tick-boxes are checked; ISCG 05 chain guide tabs, a 44/56mm tapered head tube, internal dropper seat post compatibility and 148x12mm boost rear end.

Components are chosen for performance and reliability. A Shimano groupset and SRAM DB8 brakes, RockShox forks, tubeless ready wheels and the range topping 3C EXO+ Maxxis tyres.

Up, down, along and over; the Marley proves a great riding all-rounder doesn’t have to break the bank.

Features

Frame: Ragley Marley Alloy Frame, 148mm Boost
Fork: RockShox Recon Silver RL 130mm travel, Solo Air, 27.5″, Maxle Stealth, 15X110MM, 46mm Offset
Headset: Nukeproof Neutron ZS44/28.6 | ZS44/40 Headset with Ragley Top Cap
Handlebar: Ragley Alloy Handlebar, Black, 25mm Rise, 31.8mm Clamp (Width – S780mm, M780mm, L800mm, XL800mm)
Stem: Ragley 31.8mm clamp, 50mm length, +3° rise
Grips: Ragley A20 Compound
Front Wheel: Nukeproof Neutron 15mm Boost Front Hub, WTB ST i30 TCS 2.0 27.5″ 32h rim
Rear Wheel: Nukeproof Neutron 148mm x 12mm Rear Hub, 36 points of engagement, HG Freehub, Sealed bearings, WTB ST i30 TCS 2.0 27.5″ 32h rim
Thru Axle: Length: 175mm, Pitch: M12*1.5, Thread length: 18mm
Front Tyre: Maxxis 27.5×2.60’’ Minion DHF Foldable 120TPI 3C MaxxTerra/EXO+/TR
Rear Tyre: Maxxis 27.5×2.60’’ Minion DHRII Foldable 120TPI 3C MaxxTerra/EXO+/TR
Rim Tape and Valves: 32mm Tubeless Tape and Tubeless tape supplied
Chain: KMC 10-Speed X10-EPT
Crankset: Race Face Ride, 170MM, 32T
Bottom Bracket: Nukeproof 73mm BSA
Front Brake: SRAM DB8, 180mm Rotor
Rear Brake: SRAM DB8, 180mm Rotor
Rear Derailleur: Sunrace RDMS300
Rear Shifter: Shimano Deore M4100, 10-Speed, Direct attach to brake with I-Spec EV
Drivetrain Cables: Shimano
Cassette: Sunrace MS2 10-Speed, 11-46t
Saddle: Ragley Tracker Saddle
Seat Post: Ragley 31.6mm x 400mm length Alloy
Seat Clamp: Ragley 34.9mm, QR Lever
Also included: Ragley Chain stay protector
5 Year Warranty and lifetime crash replacement
ISO 4210 Certified

Easy Assembly

When you order a bike, one of our trained mechanics will carefully prepare and pack your bike for shipping. Upon delivery, the assembly is simple and all necessary tools and plastic pedals are conveniently included in the box.

Depending on the delivery service and destination, bikes will either be delivered in a large or a small box. Below is a guide as to how your bike will arrive:

All bikes for delivery within the UK and Republic of Ireland will be delivered in a large box, except for balance bikes and BMX bikes, which are always delivered in manufacturer’s boxes.
All bikes for delivery within the EU on a standard service will be delivered in a large box. If an express delivery option is chosen, your bike will be packed into a small box. Again, the exception is balance bikes and BMX bikes, which are always delivered in manufacturer’s boxes.
All bikes for worldwide delivery outside the EU will be delivered in small boxes.

This video demonstrates assembly from a SMALL BOX.

This video demonstrates assembly from a LARGE BOX.

Please note that due to ongoing issues in the global bike supply chain, manufacturers may substitute certain component items due to availability. In this situation, they will be replaced with the same quality or better performing parts.
