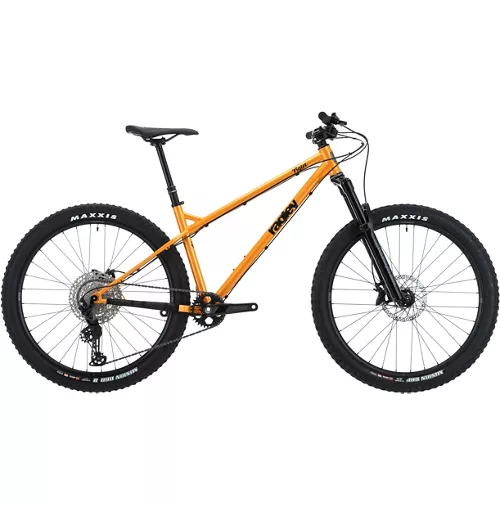

Ragley Piglet Hardtail Bike

Offering flickable and responsive performance, playful agility and hardcore trail riding stability, the Ragley Piglet is the ultimate hardtail mountain bike (MTB) for fun on your local woodland trails and favourite bike park routes. With a robust but lightweight Chromoly (CrMo) frame equipped with 130mm-travel RockShox Revelation RC forks, this bike offers exceptionally responsive performance and compliancy as you boost, flow and carve your style into the mountain side.

Ragley has also fitted with a Shimano SLX 1×12-Speed groupset with a wide-ranging 10-51T cassette and hydraulic disc brakes that give you superb pedalling efficiency and outstanding braking performance anywhere in the hills.

The Piglet sounds like an underdog. It’s shorter travel than the Blue Pig and shares its geometry with the more trail-friendly Marley. But make no mistake, this Piglet is a special breed.

The triple butted 4130 CrMo frame tubes supply the compliance for all day comfort but enough spring to make it a trail sniper’s dream on tight and twisty singletrack.

Engaging, lively and accurate, the Piglet is a joy on all-day epics, smashing laps around the local woods or carving up the trail centres. The frame features all the modern standards, including ISCG 05 chain guide tabs and boost 148×12 axle spacing.

Equipped with a mix of Shimano’s 12-speed Deore/SLX parts including SRAM DB8 brakes. Nukeproof then provide the wheels with the Tubeless ready rims shrouded by Maxxis 3C EXO+ rubber. No upgrades needed.

The Ragley Piglet Hardtail Bike exists so you can have more fun on the trails…

Features

Frame: Ragley Piglet 27.5″ 4130 Chromoly (CrMo)
Fork: RockShox Revelation RC 130mm, 27.5″, 15×110 Boost, Stealth Maxle, 46mm Offset, 1.5″ Tapered Steerer
Headset: Nukeproof ZS44/28.6 | EX44/40 with Ragley top cap
Handlebar: Ragley Alloy Handlebar, Black, 25mm Rise, 31.8mm Clamp (Width – S780mm, M780mm, L800mm, XL800mm)
Stem: Ragley Stubbing V2 50mm BLACK, 31.8mm clamp, Black
Grips: Ragley A20 Compound
Front Wheel: Nukeproof Neutron V2 27.5″ 32h 15mm x 110mm Boost
Rear Wheel: Nukeproof Neutron V2 27.5″ 32h 148mm x 12mm Boost Microspline, 36 points of engagement
Thru Axle: Length: 175mm, Pitch: M12*1.5, Thread length: 18mm
Front Tyre: Maxxis 27.5 x 2.6″ Minion DHF 3C MaxxTerra/EXO+/TR 120tpi
Rear Tyre: Maxxis 27.5 x 2.6″ Minion DHR 3C MaxxTerra/EXO+/TR 120tpi
Rim Tape and Valves: Nukeproof 33mm Tubeless Tape and Nukeproof Horizon Tubeless Valve Supplied
Chain: Shimano Deore CN-M6100 – 12-Speed
Crankset: Race Face Ride, 170MM, 32T
Bottom Bracket: Nukeproof 73mm BSA
Front Brake: SRAM DB8, 180mm Rotor
Rear Brake: SRAM DB8, 180mm Rotor
Rear Derailleur: Shimano M7100 SLX SGS 12-Speed, Shadow Plus
Rear Shifter: Shimano M7100, SLX 12-speed, Direct attachment to brake lever using I-Spec EV
Drivetrain Cables: Shimano
Cassette: Shimano Deore M6100-12, 10-12-14-16-18-21-24-28-33-39-45-51T
Saddle: Ragley Tracker Saddle
Seat Post: Brand-X Ascend Internal Route Post – 31.6mm, SM – 125mm Drop, MD – 150mm Drop, LG/XL – 170mm Drop
Seat Clamp: 34.9mm Alloy
Also included: Ragley Chain stay protector, touch up paint
5 Year Warranty and lifetime crash replacement
ISO 4210 Certified

Easy Assembly

When you order a bike, one of our trained mechanics will carefully prepare and pack your bike for shipping. Upon delivery, the assembly is simple and all necessary tools and plastic pedals are conveniently included in the box.

Depending on the delivery service and destination, bikes will either be delivered in a large or a small box. Below is a guide as to how your bike will arrive:

All bikes for delivery within the UK and Republic of Ireland will be delivered in a large box, except for balance bikes and BMX bikes, which are always delivered in manufacturer’s boxes.
All bikes for delivery within the EU on a standard service will be delivered in a large box. If an express delivery option is chosen, your bike will be packed into a small box. Again, the exception is balance bikes and BMX bikes, which are always delivered in manufacturer’s boxes.
All bikes for worldwide delivery outside the EU will be delivered in small boxes.

This video demonstrates assembly from a SMALL BOX.

This video demonstrates assembly from a LARGE BOX.

Please note that due to ongoing issues in the global bike supply chain, manufacturers may substitute certain component items due to availability. In this situation, they will be replaced with the same quality or better performing parts.
