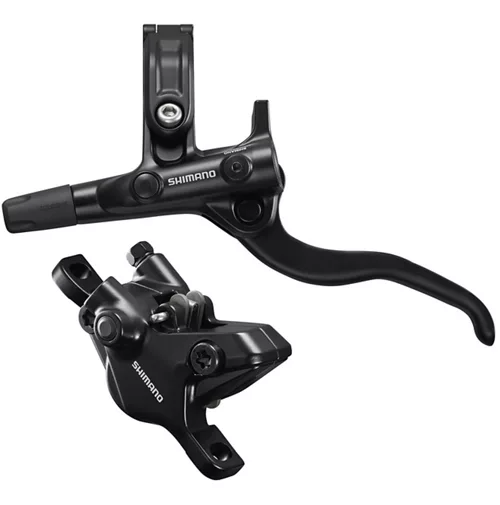

Shimano Deore M410 Disc Brake (M4100 Lever)

Shimano Deore M410 Disc Brake (M4100 Lever)

The Deore M410 Disc Brake (M4100 Lever) from Shimano is for the avid mountain biker who wants a reliable hydraulic disc brake that delivers ultimate control and safety in all riding conditions.

Shimano M4100 Brake Lever

This brake lever is engineered for fast-paced MTB riding, as it gives you exceptional stopping power and control on the toughest of rides. It features a rock-solid alloy construction, which makes it capable of handling all the sudden hits that come with weaving between the trails at speed. Shimano has also equipped this model with an adjustable lever reach, so you can set it up to perfectly match your hand size, personal preferences and the trail conditions.

Shimano Deore M410 Disc Brake Caliper

Ready for intense mountain bike adventures, this brake caliper delivers smooth and efficient braking with a minimalist design. It features a one way internal fluid circuit, which makes bleeding easy, while great piston retraction increases pad to rotor clearance. Shimano has also ensured that this post most model is Ice Tech compatible, so it can be used with Ice Tech pads (sold separately) for greater heat dissipation, reducing brake surface temperature by 50 degrees Celsius.

Ice Technologies for All Conditions Riding

The fade, which can occur to disc brake rotor and pad when braking on a long downhill ride for instance, has a negative impact on the braking performance. Shimano has adopted Ice Technologies disc brake rotor and Ice Technologies pad to realize the cooling technology for consistent performance. The clad disc brake rotor blade, which has a 3 layer-sandwich structure of stainless steel, aluminum and stainless steel, provides better radiation performance. Also, the radiation fin has been adopted for the pad. Moreover, the clad disc brake rotor blade and the radiator fin provide long pad life, less noise, less fade and lightweight.

Ice Technologies piston in order to achieve optimized lightweight, high rigidity and heat dissipation. Oversized pistons transfer hydraulic power directly to the brake pad, and ceramic material is used to avoid heat transfer for constant stable braking, providing efficient stopping power transfer without loss.

One Way Bleeding

“One Way Bleeding” was developed for quick and easy prevention of air in our hydraulic system. We have streamlined the oil route throughout the system to prevent air bubbles from being captured in the system.

One way oil routing plus a funnel tool with mineral oil provides an easy and clean bleeding system.

Features:

• Shimano M4100 Lever Features:
• Crank Arm Material: Alloy
• Use: MTB
• Design: Opening clamp band design with hinge
• Oil: For use with mineral oil only
• Adjustment: Reach reach
• I-spec-EV Compatible: Yes
• Single or Pair: Single
• Shimano M410 Caliper Features:
• Use: MTB
• Mount: Post mount
• Positioning: Front or Rear
• Piston: 2-piston
• Oil: Mineral oil
• Fluid Circuit: One way internal fluid circuit
• Mounting Bracket: Shim-less mounting bracket
• Fork Compatibility: International standard and post mount forks
• Brake Lever Compatibility: Shimano hydraulic brake levers
• Ice Tech Pad Compatible: Yes
• Single or Pair: Single
• Pads Included: Yes, comes as standard with resin pads

Manufacturer’s Part Numbers:

• Left Hand Front (with 850mm hose): 3068006367
• Right Hand Front (with 900mm hose): 3068006458
• Right Hand Rear (with 1700mm hose): 3069010427
• Left Hand Rear J-Kit (with 1700mm hose): 3069010938
• Left Hand Rear (with 1700mm hose): 3069010949
