Shimano RS520 12 Speed Double Chainset

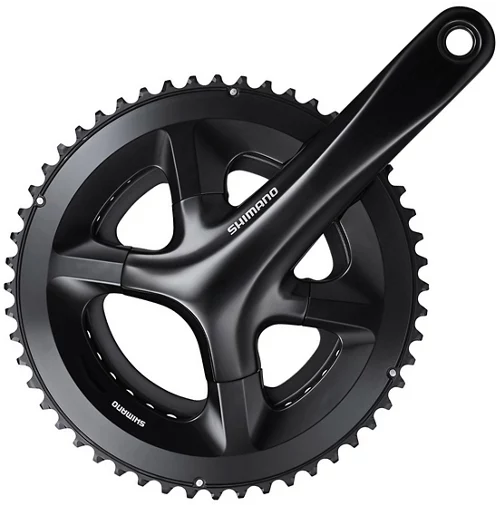

Shimano FC-RS520 12 Speed Double Chainset

Ready for wherever your next road journey takes you, this 12 speed chainset is part of Shimano’s revolutionary R7100 series. Coming fully equipped for long days on the road, it features a two-piece crank design that uses an integrated 24mm bottom bracket and 2×12 speed 50-34T chainrings. Another benefit is its four-arm construction and compatibility with modern disc brake road frames, making it simple to integrate into your drivetrain setup for a performance upgrade.

Features:

• Use: Road
• Speed: 12 speed
• Q-Factor: 150mm
• Chainline: 44.5mm
• PCD: 110mm
• Compatible Chain: HG 12 speed
• Tooth Count: 50/34T
• Number of Chainrings: 2
• Recommended Bottom Bracket: Pressfit: BB-RS500-PB; Threaded: BB-RS501

Technologies:

• – Affordable and high-end style crankset.
• – 4-arm crankset for 12 speed drivetrain.
• – Compatible with frames of O.L.D. 135mm and 410mm chainstay length.
• – 2-piece crankset.
• – Integrated crank arm and bottom bracket.
• – Increased rigidity with less weight.
• – Wider bearing positioning.
• – Rigidity is enhanced and pedalling force is efficiently transmitted.
• – Precision Bearings.
• – Low maintenance and simplified installation.

Manufacturer’s Part Numbers:

• 165mm: FCRS520A04
• 170mm: FCRS520C04
• 172.5mm: FCRS520D04
• 175mm: FCRS520E04
