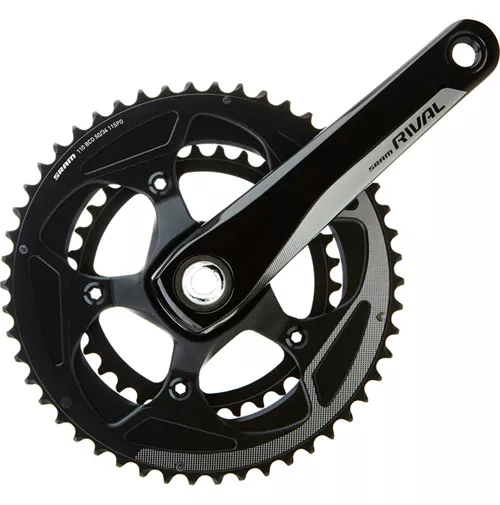

SRAM Rival 22 PF30 Crankset

SRAM Rival 22 PF30 Crankset

The SRAM Rival 22 PF30 Crankset delivers immense performance across a broad variety of disciplines. Ideal for cyclocross, triathlon, road racing or adventure cycling, the Rival 22 features technology to overcome any challenge.

PressFit 30 Bottom Bracket System

It’s all the best from BB30 and Press-Fit bottom brackets in one captivating package. This bottom bracket is designed for 30mm spindle cranksets. The key difference with PressFit 30 is how the bearings are fitted into the frame. Bearings are housed in nylon cups which will be pressed into the frames bottom bracket shell. PressFit 30 will feature an integrated seal, pre-assembled into the cups, to further prolong bearing life.

Slick Shifting X-GlideR Chainrings

X-GlideR Chainrings are designed for an optimized shifting performance with the Yaw front derailleur. The stiffer rings (5mm 7075-T6 aluminium CNC-machined) feature upshift rivets with an advanced design adopted from SRAM XX. CNC machining allows for precision control of each tooth shape, ramp, and nearly every shifting feature of the chainring. The chainrings, chain, and front derailleur are designed as a single integrated system for optimized performance.

Features:

• Aluminium arms machined for strength and improved stiffness
• Alloy X-GlideR chainrings with advanced shift timing pins and ramps, which are optimised for shifting with the Yaw front derailleur
• 11 speed Yaw compatible (road)
• Compatible Drivetrain Speed: 11
• Bottom bracket: Press-Fit 30 (PF30)
• BCD: 110
• Chainline: 45mm
• Bottom Bracket not included
