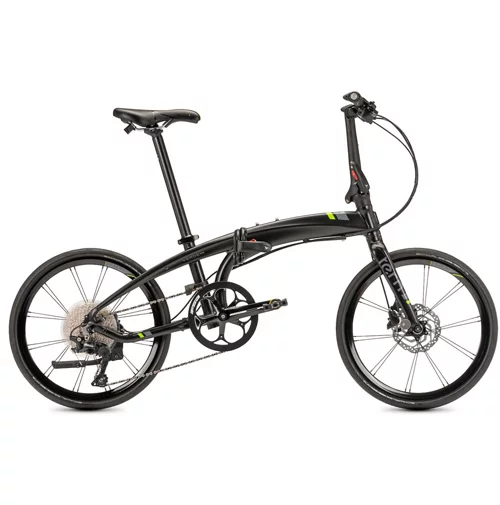

Tern Verge P10 Folding Bike

The Verge P10 is Tern’s high-performance folding bike that’s engineered to provide a fast, agile and stable inner-city riding experience. Ideal for fast paced urban errands and ultra-efficient commutes, this bike provides an exceptional cycling performance while folding down in seconds for the next stage of your journey. Plus, it features an alloy frame with the pinnacle of modern folding bike technology, a Shimano Deore 1×10-Speed groupset, a 11-40T wide-ranging cassette and hydraulic disc brakes. And, it’s equipped with a rear light, a kickstand and a stylish brass bell.

Aerodynamic T-Tuned Racing Geometry and 451 Wheels

The Verge P10 is built for performance. It features 451 racing wheels and aerodynamic T-Tuned geometry, giving it exceptional comfort and stability for riding anywhere. With an adjustable handlebar stem, you can dial in your riding position with surgical precision. Tern even included a Porter+ saddle for comfortable all-day riding and convenient portability.

OCL Advanced Frame Joint Folding Design

The key to any folding bicycle is the frame, and specifically, the folding joint at the heart of the frame. Done well, it locks the two halves of the frame together without any hint of movement or sound. It should be easy to operate and work flawlessly year after year. The OCL Joint does all of these things and is a new reference in folding frame technology.

T-Tuned Geometry

Tern endeavours to build fast-folding bikes that ride like full-sized bikes. Their T-Tuned geometry is the culmination of their expertise and commitment. They’ve tweaked the wheelbase, rake, and seat-tube angle of our design to deliver the most confident and stable ride of any bike in Tern’s line-up. Ride one and try it.

Agile and Stable Tarsus Fork

Utilizing a single hydroformed tube mated to a precision-machined steerer, the Tarsus delivers superior strength in a shape that matches the sophisticated lines of the Verge and Eclipse frames.

Physis 3D Adjustable Handlepost

Five patented technologies and unique manufacturing technology add up to the strongest, stiffest folding handlepost available. The Physis uses a special manufacturing process called 3D forging, which forms the post from a single piece of aluminium, eliminating all welds.

Lightweight, Comfortable and Robust Strut Seatpost

Made from special 2104 aluminium, the Strut is Tern’s lightest seatpost ever. It’s designed with an 8mm offset to deliver a spacious cockpit and an aerodynamic riding position. It’s capped with a dual-bolt rail clamp for precise saddle adjustment.

Key Features:

Rides with exceptional comfort and stability thanks to our unique technology and T-Tuned geometry
Light and portable—only 11.7 kg (25.8 lb)
Fold and store indoors for the ultimate theft protection
451 wheels deliver a full-sized ride with minuscule impact on the folded size
Shimano Deore 1x drivetrain, delivering a huge gear range in a simple package

Features:

Frame: Tern Verge, hydroformed Aluminium, 3 patented technologies
Fork: Tern Tarsus, 6061-Al, hydroformed
Wheel Size: 20″ (451)
Folding Time: 10 seconds
Folding Size: 38 x 80 x 74 cm (15″ x 31.5″ x 29.1″)
Distance (Seatpost to Handlebar): Min. 610 mm (24″); Max: 660 mm (26″)
Distance (Saddle to Pedal): Min. 650 mm (25.6″); Max: 910 mm (35.8″)
Suggested Rider Height: 142 – 190 cm (4’8″ – 6’3″)
Max Load Weight: 105 kg (230 lb)
Handlepost: Tern Physis 3D, 3D forged, 5 patented technologies
Stem: Syntace VRO, adjustable, Built for Tern
Headset: Flux, cartridge bearings, Physis integrated
Handlebar: Kinetix Comp, double-butted 6061-Al, for VRO
Grips: BioLogic Arx
Saddle: Tern Porter+, patented GripPad design, PrimeGel padding
Seatpost: Tern Strut, 2014-Al, 2 bolt clamp
Seatpost Clamp: Syntace OverLock
Brakes: Shimano, hydraulic disc
Front Wheel: Kinetix Pro Disc, Paired Spoke technology, Shimano Centerlock, 20H
Rear Wheel: Kinetix Pro Disc, Paired Spoke technology, Shimano Centerlock, 20H
Tyres: Schwalbe Durano, 28-451, puncture protection, 115 psi
Shifters: Shimano Deore, 1 x 10-Speed
Rear Derailleur: Shimano Deore Shadow
Crankset: FSA Vero, Built for Tern, 53T
Cassette: 11-40T, 10-Speed
Bottom Bracket: Cartridge, sealed bearings
Chain: KMC X10
Pedals: LiteForm QR, alloy body, QR right/standard left
Shifter/Cable Housing: Jagwire LEX-SL, slick treatment, alloy ferrules
Bell: Pitch, Brass
Kickstand: Rear mount, Pletscher design
Clip System: Magnetix 2.0
Luggage Socket: Yes
Rear Light: Biologic TailLight
Accessory: Pedal Holder
Weight: 11.7 kg (25.8 lb)
