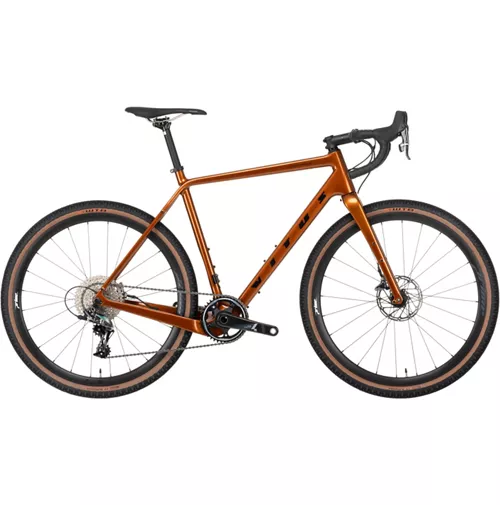

Vitus Substance CRX-1 Adventure Road Bike

A genuine “go anywhere” adventure bike, the Substance CRX-1 is ready to explore every road, dirt track or gravel trail. Its UD carbon fibre frame and fork is built up with tough Prime Kanza wheels with wide 650b (27.5″) tyres, SRAM Force 1×11 gearing and SRAM Force hydraulic disc brakes.

Gravel Bike with Full Carbon Frame and Fork

The Substance carbon model is born tough and light. This bike can go as hard and fast as you want it to or be a lightweight friend for a long-distance relaxed epic. With the addition of mounts for luggage, mudguards and multiple bottles, it’s also capable of the biggest bike packing or touring adventures.

SRAM Rival 1×11 Gravel Bike Groupset

The Substance CRX-1 is a high-performance adventure gravel bike. Featuring SRAM’s Rival 1 hydraulic groupset, it gives you a gear range that can cope with any terrain. With X-Sync technology from the chainset, powerful disc brakes and a Roller Bearing Clutch on the rear mech, your chain will always stay firmly planted, whatever the adventure.

Wide, High-Grip WTB Gravel Tyres

This highly capable drop-bar bike is fitted with Prime Kanza Aluminium wheels, which are wrapped with big volume WTB Byway TCS 47mm tyres. 650b is perfect for adventure cycling with the large outer diameter keeping your wheels rolling over bumps, whilst the added tyre volume allows you to adjust pressures depending on the terrain for grip, comfort and luggage weight. The finishing kit is made up of a Vitus 6061 aluminium handlebar, stem and seat post. The handlebars feature a flat top section for added comfort on and off-road, with the Substance CRX-1 featuring a 3-degree bar flare.

Features:

Frame: Substance UD Carbon, Mudguard Mounts, Rack Mounts, 12mm x 142mm axle, Flat Mount calipers
Fork: Substance UD Carbon, Tapered Steerer, 100 x 12mm, Mudguard Mounts, Bottle Mounts, Flat Mount
Headset: ACROS Aix 322 R3, Sealed Bearings, OD48, 1 1/8″ – 1 1/2″ , 41.8 / 28.6mm – 52 / 40mm
Bottom Bracket: SRAM GXP, BSA Threaded English, 68mm
Handlebar: Vitus 6061 Aluminium Wing, 77mm Reach, 128mm Drop, 16 Degree Flare, XS: 400mm S: 400mm M: 420mm L: 420mm XL: 440mm
Stem: Vitus 6061 Aluminium, 3D Forged, Bar Bore 31.8mm, +/- 7 degrees, XS: 80mm S: 90mm M: 90mm L: 100mm XL: 100mm
Bar Tape: Vitus Super Grip
Wheelset: Prime Kanza Aluminium Disc, 650b, Double Butted Spokes, 12 x 100mm Front, 12 x 142mm Rear, Centre Lock, HG Freehub
Tyres: WTB Byway TCS Road Plus, 650b x 47, Tubeless Ready, Dual DNA Compound, UST Aramid Bead
Max Tyre Clearance: 650b x 47c Or 700 x 42c
Chain: KMC X11, 11-Speed
Crankset: SRAM Force 1 X Sync, 40T, XS: 165mm S: 170mm M: 172.5mm L: 172.5mm XL: 175mm
Brakes: SRAM Force hydraulic disc brakes, Flat Mount
Rotors: SRAM Centreline, Front: 160mm, Rear: 160mm
Front Derailleur: N/A
Rear Derailleur: SRAM Force 11-Speed, long cage
Shifters: SRAM Force 1×11-Speed
Cassette: Sunrace MS8, 11-34T, 11-Speed
Saddle: Vitus, Crn-Ti rails
Seat Post: Vitus 6061 Aluminium, 27.2mm x 350mm, 15mm Offset
Seatclamp: Vitus Aluminium, 31.8mm
Axles: Vitus 12mm Thru-Axles

Easy Assembly

When you order a bike, one of our trained mechanics will carefully prepare and pack your bike for shipping. Upon delivery, the assembly is simple and all necessary tools are conveniently included in the box.

Depending on the delivery service and destination, bikes will either be delivered in a large or a small box. Below is a guide as to how your bike will arrive:

All bikes for delivery within the UK and Republic of Ireland will be delivered in a large box, except for kids’ bikes and BMX bikes, which are always delivered in manufacturer’s boxes.
All bikes for delivery within the EU on a standard service will be delivered in a large box. Again, the exception is kids’ bikes and BMX bikes, which are always delivered in manufacturer’s boxes.
All bikes for worldwide delivery outside the EU will be delivered in small boxes.

This video demonstrates assembly from a SMALL BOX.

This video demonstrates assembly from a LARGE BOX.
